Symbol Zebra LS2208 Corded Handheld Standard Range Laser Barcode Scanner (LS2208-SR20007R)
KSh 11,500.00
LS2208 Handheld Scanner
Our best selling handheld laser scanner
Durable construction
With its patented single board construction, patented frictionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation.
Capture high-density bar codes for greater application flexibility
With just one scanner, you can capture the high density bar codes common on small items.
Deploy in every corner of the world
With support for 97 international keyboards, the LS2208 is ready for operation in your country, right out of the box.
Class-leading working range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.
More decode feedback options
Choose from a variety of options to indicate the successful capture of a bar code: the Direct Decode Indicator (a blinking laser line), a beep tone, a red/green LED indicator — or any combination of the three.
All day comfort your workers can count on
The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments. The result? Reduced user fatigue and increased worker productivity.
Put our best selling laser scanner to work in your checkout lines.
For more information, visit www.zebra.com/ls2208

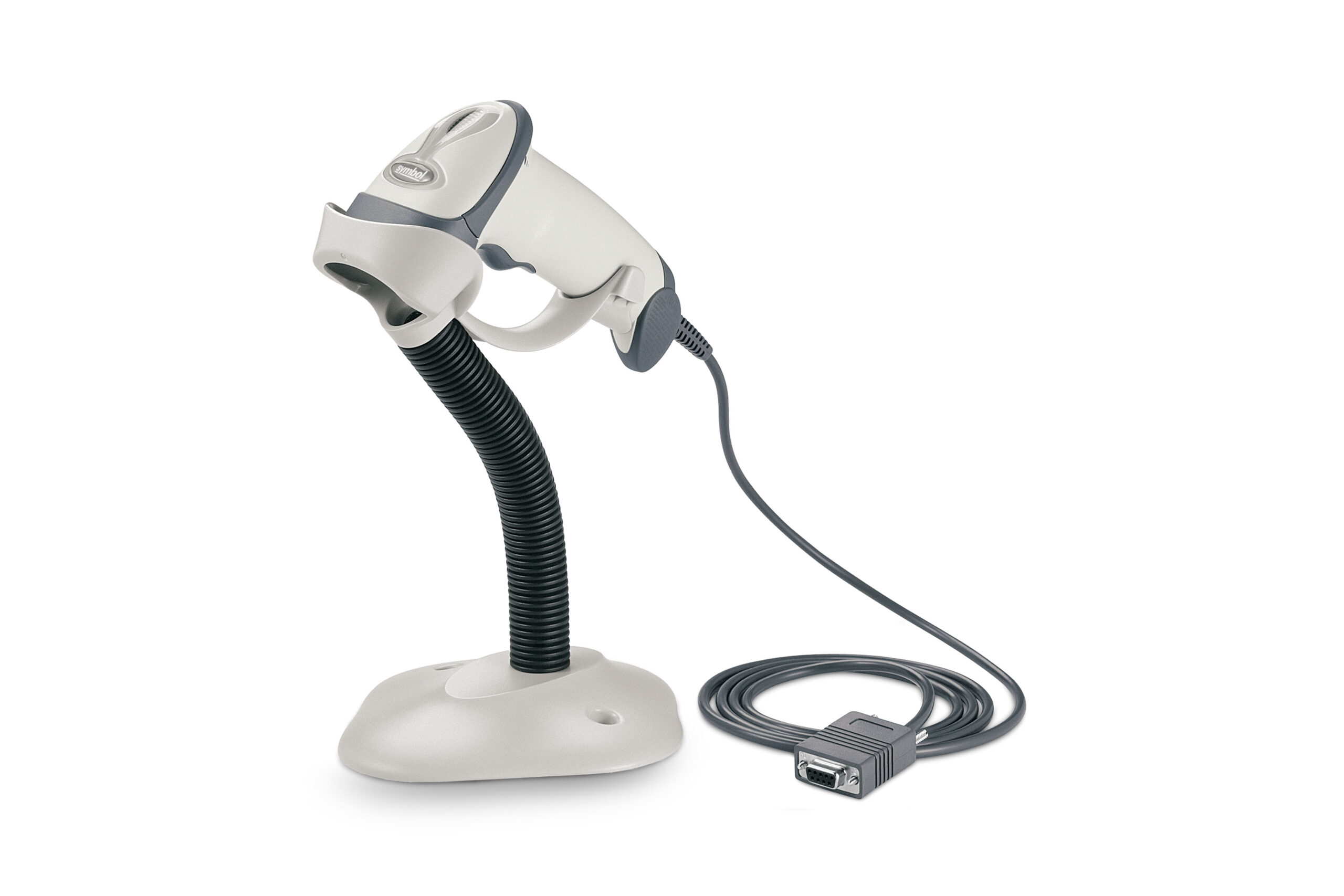

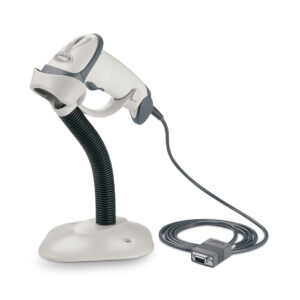

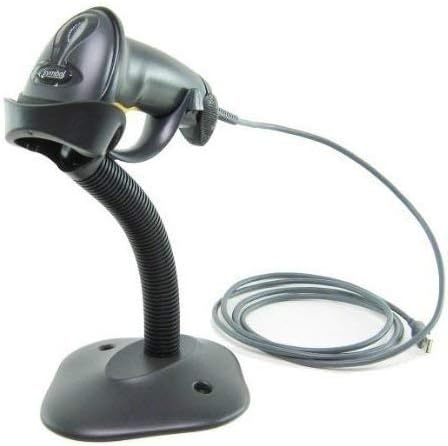

Flexible handheld or hands-free operation
The optional IntellistandTM enables presentation scanning and allows workers to automatically switch between hands-free and handheld modes in the time it takes to drop the LS2208 into the stand.
Multiple interfaces
No matter what host you need to connect to today or tomorrow, the future proof LS2208 is ready.
Truly plug-and-play
The universal cable connects to any computing environment, practically eliminating setup and training time.
Advanced Data Formatting (ADF)
Format data properly before it is sent to your host computer, eliminating the costly modification of host software.
Specifications
Physical Characteristics
| Dimensions | 6.0 in. H x 2.5 in. W x 3.3 in. D 15.2 cm. H x 6.4 cm. W x 8.5 cm. D |
| Weight | 5.3 oz./150.0 g |
| Input Voltage Range | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Operating Current at Nominal Voltage (5.0V) | 175 mA (typical) |
| Standby Current (idle) at Nominal Voltage (5.0V) | 90 mA (typical) |
| Color | Cash Register White, Twilight Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| User Indicators | Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume) |
Performance Characteristics
| Light Source | 650 nm Laser Diode Class 2 |
| Scan Pattern | Single line |
| Scan Speed | 100 scans per second |
| Scan Angle | 35° |
| Minimum Print Contrast | 20% minimum reflective difference |
| Skew Tolerance | ± 10° |
| Pitch Tolerance | ± 65° |
| Roll Tolerance | ± 60° |
User Environment
| Operating Temperature | 32° to 122° F/0° to 50° C |
| Storage Temperature | -40° to 158° F/-40° to 70° C |
| Humidity | 5% – 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Tumble Specification | Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler |
| Environmental Sealing | IP30 |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 8,000 Foot Candles / 0 to 86,080 Lux; tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions; Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft. Candles (4,844 Lux) Sunlight: 8000 Ft. Candles (86,111 Lux) |
Symbol Decode Capability
| Scanning Technology | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies. |
| Minimum Element Resolution | Code 39: 3.0 mil |
| Gooseneck Intellistand |
Regulatory
| Electrical Safety | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07 |
| EMI/RFI | FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC |
| Laser Safety | CDRH Class II; IEC Class 2 |
| Environmental | Compliant with RoHS Directive 2011/65/EU; EN 50581: 2012 |
| Visit www.zebra.com/ls2208 for complete regulatory information. For countries outside USA, Canada, European Economic Area or Australia, consult your local Zebra representative. |
Utilities And Management
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned bar code data and prints reports. For more information, visit www.zebra.com/123Scan |
| Symbol Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the LS2208, is warranted against defects in workmanship and materials for a period of five years from the date of shipment. Limited lifetime warranty on the scan element. Complete Zebra hardware product warranty statement: www.zebra.com/warranty |
Recommended Services
| Zebra OneCare Select; Zebra OneCare Service Center Select |
Decode Ranges (Typical*)
| Symbology/Resolution | Near/Far |
| Code 39: 3 mil | 1.6 – 4.8 in./4.1 – 12.2 cm |
| Code 39: 4 mil | 1.3 – 8.7 in./3.3 – 22.1 cm |
| Code 39: 5 mil | 0.9 – 11.7 in./2.3 – 29.7 cm |
| Code 39: 7.5 mil | 0.1 – 19.1 in./0.3 – 48.5 cm |
| Code 39: 20 mil | 0 – 33.8 in./0 – 85.9 cm |
| Code 39: 40 mil | 1 – 43.1 in./2.5 – 109.5 cm |
| UPC: 13 mil (100%) | 0 – 25.1 in./0 – 63.8 cm |
| * Printing resolution, contrast and ambient light dependent. |
Markets and Applications
Retail
- Point of Sale (PoS)
- In-store inventory tracking
- 1D loyalty card processing
- 1D paper coupon redemption
Education
- Library book checkout
- Inventory and asset tracking
